Mixer

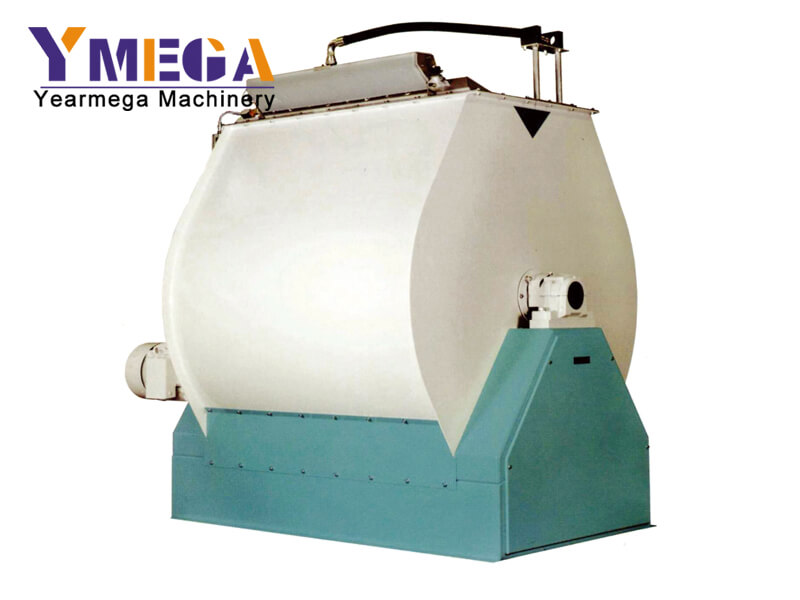

Single Shaft Paddle Mixer
Material : Powder, flour, particles, slice and bulk material
Mixing time : 1.5 minutes
Power : 5.5-45 kw
Capacity : 500-3000 kg/batch
Application : For homogeneous mixture of wet and dry ingredients in feed, food, chemical and fertilizer industries.
SEND INQUIRY
The SDHJ series Single shaft Paddle Mixer is a high-performance batch mixer that uniformly mixes dry materials that are free flowing. It is mainly used in the grain processing industry such as feed and flour milling processing for blending materials.
Depending on the specific nature of the products to be mixed and liquid addition characteristics, this mixer can add up to 5% liquid and is available in a range of capacities from 500 litres to 8,000 litres.
Main parameters of the single shaft feed mixing machine
| Model | Volume ( m³) |
Capacity/batch (kg) |
Mixing time(s) | Homogeneity (CV≤%) |
Power (kw) |
| SDHJ0.2 | 0.2 | 100 | 60-120s | 7 | 4 |
| SDHJ0.5 | 0.5 | 250 | 60-120s | 7 | 7.5 |
| SDHJ1 | 1 | 500 | 60-120s | 7 | 15 |
| SDHJ2 | 2 | 1000 | 60-120s | 7 | 22 |
Best mixing accuracy, Flexibility and optimal mixing results.
The SHSJD series single shaft paddle mixer ensures uniform product mixing and the highest quality standards. When the mixing ratio is 1:100,000, it maintains excellent mixing uniformity (CV) of no more than 5%.
Efficient mixing saves time
The optimal geometry of the mixing chamber and matching paddles guarantees the superior characteristics of the mixer: mixing time is about 1.5 minutes
Large opened door for discharging time of less than 10 seconds.
Up to 20 batches per hour means that this high efficient mixer is twice as efficient as conventional machines.
Perfect design, Top sanitation
Properly designed surface area and volume of the mixing chamber contributes to the optimization of the mixing process, preventing material residues and avoiding contamination.
Quick and easy cleaning of mixing chambers and paddles.
Low maintenance
The mixing paddles of the high efficient mixers and the split shaft seals are easy to replace.
design of the wear parts significantly reduces the maintenance costs.
