Mixing Machine
Economic Fish Feed Mixer Machine
Material : Fish Feed Raw Materials
Size : Powder
Power : 3-22 KW
Guarantee : 1 year
Application : Raw materials mixing for quality pellet making
SEND INQUIRY

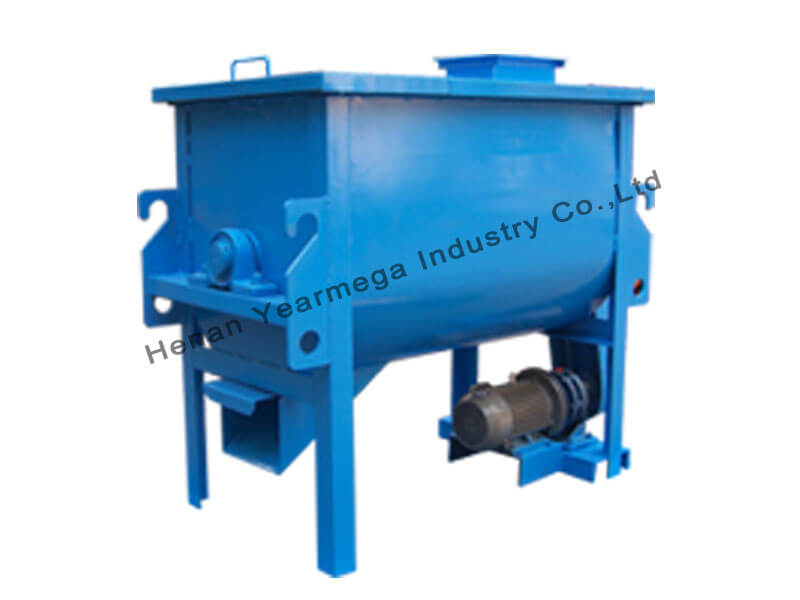

This fish feed mixer machine,also called ribbon blender, is a kind of single-shaft double-ribbon small feed mixer. It is widely used in the evenly mixing of fish feed raw material to ensure quality pellet making. And it is also used for livestock feed production plants. If you need large capacity, you can choose our double-shaft feed mixing machine.
Ribbon Mixer Highlights
1. Wide Application: It is mainly used to mix the wheat flour, corn flour, sorghum flour and other materials for fish feed pellet and livestock feed pellet making.
2. Better mixing effect. During the process, you can add water or chemical liquid according to your need to reach full mixing effect.
3. Multiple working pattern. Its mixing model has scraper type, inner-spin type and outer ribbon type.
4. Advanced design. The discharge hole adopts the new handle-opened design, which has the good seal effect and avoides material leaking.
5. Quality Material. The main part of our feed mixer machine adopts the stainless steel material.
6. Compact Structure, large capacity. This will greatly save space and production cost for you.
How Does Our Small Feed Mixer Work
During the chamber, the spiral ribbon makes materials up and down while the central spiral and outer spiral ribbon press the material do back and forth movement, thus realizing fully and evenly mixing. Welcome to see our video:
Ribbon Blender Technical Data
Model | Power (kw) |
Capacity (kg/batch) |
Dimension (mm) |
Weight (kg) |
WLH100 | 3 | 100 | 1530*820*1420 | 260 |
WLH200 | 3-4 | 200 | 1650*1050*1450 | 350 |
WLH500 | 7.5-11 | 500 | 2400*1050*1700 | 580 |
WLH1000 | 15 | 1000 | 2300*1500*1650 | 850 |
WLH2000 | 18.5-22 | 2000 | 2800*1600*1750 | 1950 |
