Grinding Machine

HOME > PRODUCTS > Fish Feed and Pet Food Machine > Grinding Machine >

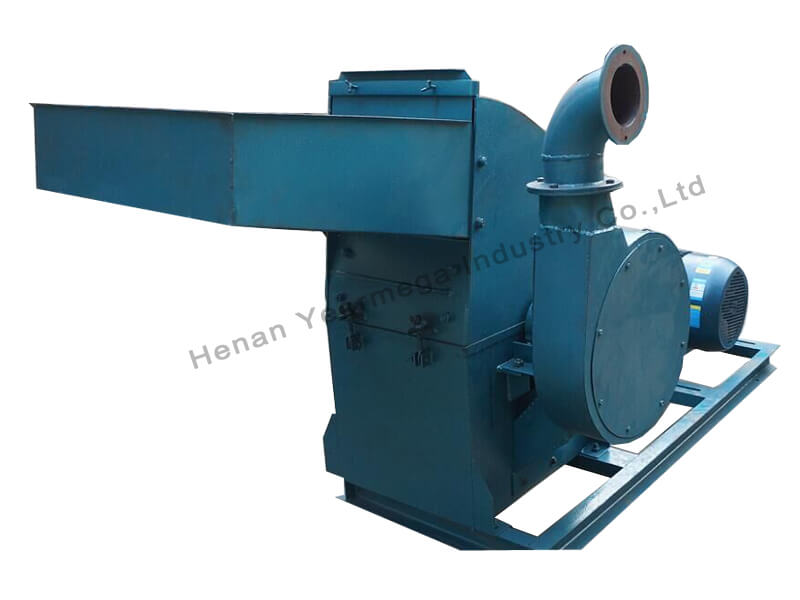

The small grinding machine, also called small hammer mill or feed crusher is a machine specializing in crushing materials by the collision between the high-speed hammer and materials. For realizing different processing effects, you just need to change the screen with different size holes. It can be used independently or be the first part of fish feed pellet production line.

Main Features of The Small Grinding Machine

1. Cheap Price. Because of low price and high efficiency, this small grinding machine is the best choice for the farm owner, small and middle size feeding factory or for family use.
2. Easy operation and low energy consumption. This will greatly save your money and time.
3. Wide application. It can process both agricultural materials and pharmaceutical &industrial materials such as corn stalk, peanut shell, dry grass and Chinese medicine crops, coal residue,etc.
4. Simple structure for easy daily maintenance. Good maintenance contributes to long service life of a machine.
5. Core part is made of alloy steel to ensure long service life and excellent processing effect.

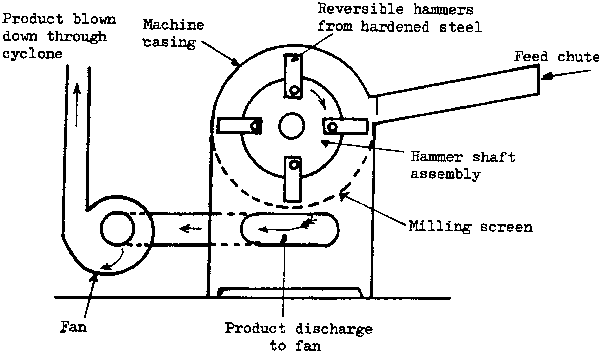

Working Principle of Electric Grinding Machine

☞ This grain grinder consists of feeding port, top engine block, bottom engine block, rotor, screen sieve, hammer blades, working fan, feed sucking pipe, etc.
☞ The raw material enters into crushing chamber through feed chute and then become suitable sizes under the force of high-speed hammer.  Finally, the feed powder passes through the screen and is been delivered into the storage bag under the suction force of working fun.


Review Video of Small Grinding Machine


Main Parameters of Small Grinding Machine
