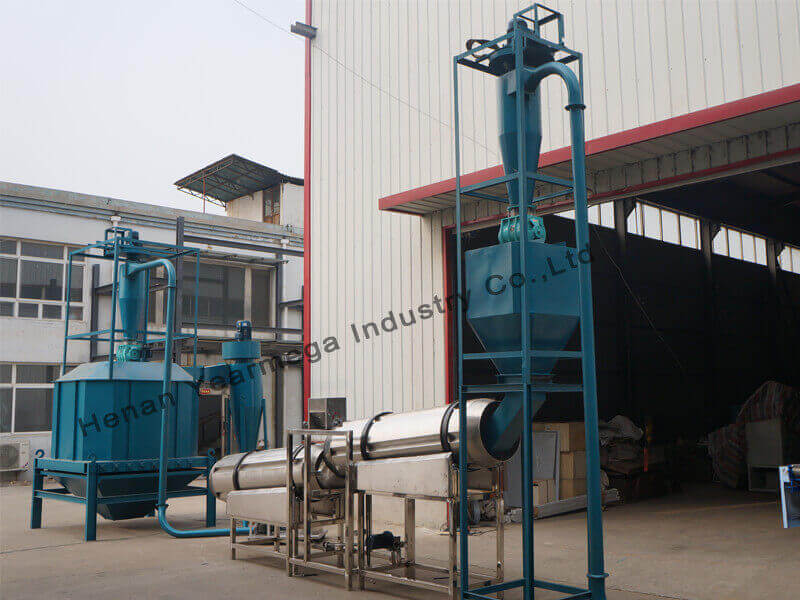

Fish Feed and Pet Food Production Line

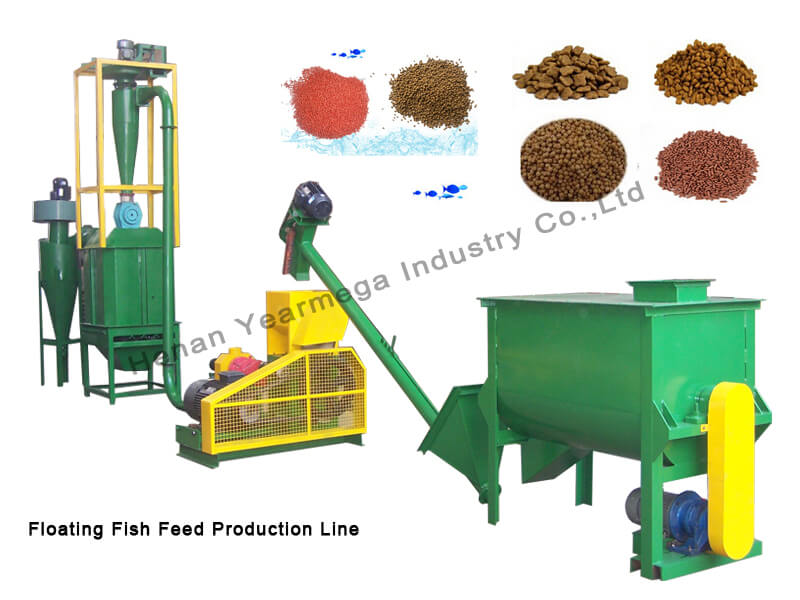

Fish Feed Production Line
Material : grain powder, fish meal, bone meal, etc.
Machines : crusher, mixer, extruder, dryer, flavor machine, etc.
Capacity : 50-3000 kg/h
Guarantee : 1 year
Application : for floating and sinking fish feed production and pet feed pellet production
SEND INQUIRY
Yearmega is a professional manufacturer of pellet machines and pellet production line. The capacity of Its fish feed production plant ranges from 50 kg/h to 3000 kg/h. This line can be for domestic and commercial aquatic and pet feed pellet production like goldfish, tropical fish, catfish, shrimps, dog and cat, etc. Quality final products and different capacities make itself a right choice for every customer.
Main Features of Fish Feed Production Line
1. Wide applicable scope: The plant can produce both floating and slow sinking fish feed as well as pet food, which is applicable for fish farm holders, fish feed manufacturers and pet food factory.
2. Large capacity span: The capacity ranges from 50 kg/h to 3000 kg/h. No matter you are for own use or commercial use, you can find right models with competitive price here.
3. Strict Details Control. It is equipped with PLC control box and alarm device, ensuring smooth and safe operation.
4. Reasonable configuration. Less energy consumption, less floor space and lessinvestment in construction work.
5. Simple assembly and disassembly. It contributes to fast shipment and installation.
Wide Raw Material Range of Fish Feed Production Line
▲The feed pellets include animal protein and plant protein.
Plant protein: soybean oil cake, groundnut oil cake, corn, rice, wheat, soybean powder, etc.
Animal protein: fish meal, meat and bone meal, shrimp meal, crab meal, sleeve-fish meal and so on. You also can add other ingredients according to requirements and eating habits of animals.
▲ Pellet Making Requirements
Moisture：20%-25%
Fineness of material: 60-80 mesh
Main Machines of Fish Feed Processing

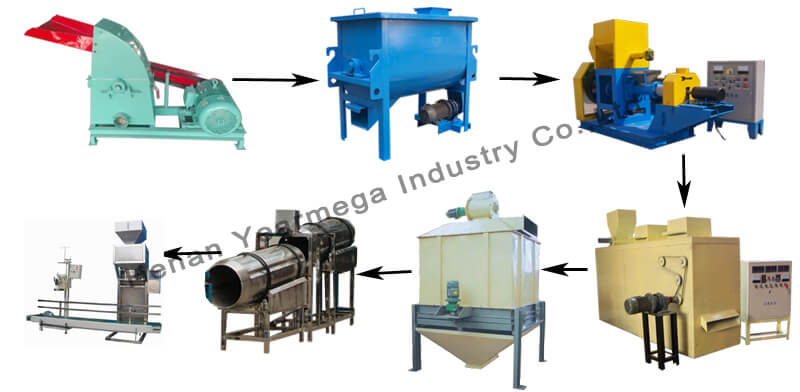

Feed grinder →Feed mixer → Fish feed extruder → Pellets dryer → Flavor Machine → Automatic weighing and packing machine
Recommended Fish Feed Production Lines for You
☆ 200 kg Fish Feed Production Line
| No. | Name | Power (kw) |
Capacity (kg/h) |
Qty(set) |
| 1 | Screw conveyor | 1.5 | 1 | |
| 2 | Materials silo | 1 | ||
| 3 | Crusher/hammer mill | 7.5 | 200-300 | 1 |
| 4 | Screw conveyor | 1.5 | 1 | |
| 5 | Cyclone and bag-type dust remover | 1 | ||
| 6 | Air lock | 0.75*2 | 2 | |
| 7 | Mixer | 4 | 100kg/10-15mins | 1 |
| 8 | Screw conveyor | 1.5 | 1 | |
| 9 | Fish Feed Extruder DGP70 | 18.5+0.8 | 200kg/h | |
| 10 | Pneumatic conveyor with air lock | 2.2+0.75 | 1 | |
| 11 | Dryer | 18+1.5+0.52 | 200kg/h | 1 |
| 12 | Pneumatic conveyor with air lock | 2.2 | 1 | |
| 13 | Flavoring machine | 4.0+0.37 | 100kg/10-15mins | 1 |
| 14 | Pneumatic conveyor with air lock | 2.2+0.75 | 1 | |
| 15 | Pellet silo | 1 | ||
| 16 | Automatic pellet packing machine | 1 | ||
| 17 | Electric control system | 1 |
☆ 500 kg Fish Feed Production Line
| No. | Name | Power (kw) |
Capacity (kg/h) |
Qty (set) |
| 1 | Screw conveyor | 2.2 | 1 | |
| 2 | Materials silo | 1 | ||
| 3 | Crusher | 15 | 500-800 | 1 |
| 4 | Screw conveyor | 2.2 | 1 | |
| 5 | Cyclone and dust collector | 1 | ||
| 6 | Air lock | 0.75*2 | 2 | |
| 7 | Horizontal mixer | 3-4 | 200 kg/ 10-15 mins | 1 |
| 8 | Screw conveyor | 2.2 | 1 | |
| 9 | DGP120 Fish Feed Extruder | 55+1.1+1.5 | 500-600 | 1 |
| 10 | Pneumatic conveyor with air lock | 2.2+0.75 | 1 | |
| 11 | Dryer | 27+0.75+3 | 500-600 | 1 |
| 12 | Pneumatic conveyor with air lock | 2.2+0.75 | 1 | |
| 13 | Rotary Flavoring machine | 0.75+0.09+0.37 | 600-800 kg/10-15 mins | 1 |
| 14 | Pneumatic conveyor with air lock | 2.2+0.75 | 1 | |
| 15 | Contraflow cooler | 4.0 | 300-500 kg/10-15 mins | 1 |
| 16 | Pneumatic conveyor with air lock | 2.2+0.75 | 1 | |
| 17 | Fish feed silo | 1 | ||
| 18 | Automatic packing machine | 2.2 | 4-6 bags/min | 1 |
| 19 | Electronic control system | 1 |
